Biogas is a mixture gas, main composition is methane (CH4) and carbon dioxide. Methane covers 40% ~ 70%, carbon dioxide covers 30% ~ 40% and also a bit of other gas like hydrogen, carbon monoxide, hydrothion sulfide oxygen, nitrogen,etc. Because there are abundant of methane, the biogas can be used to generate electritity power. Biogas is a kind of product that organics is resolved by bacterium under the anaerobic condition. Garbage in the city, sludge in the sewage treatment plants, livestock excreta from farm and straws all can be used to produce biogas.
机组对沼气的要求(在距离燃气机组燃气进气阀1m内)
Ø 沼气温度≤40℃;
Ø 沼气压力3~20kpa,压力变化率1kpa/min;
Ø H2S≤200mg/Nm3;
Ø NH3≤20mg/Nm3;
Ø 沼气中CH4含量≥40% ,变化率≤2%/min
Ø 杂质粒度≤5μm,杂质含量30mg/Nm3;
Ø 沼气中水分含量≤40g/Nm3。
适应气体:垃圾填埋,牧粪便,工业有机物等各种有机物等产生的沼气。
机组适用行业:
●养殖企业 -- 沼气发电
●工业(酒精厂、淀粉厂、造纸厂等企业)
●污水厌氧处理 -- 沼气发电
● 垃圾填埋厂(餐厨垃圾)-- 沼气发电

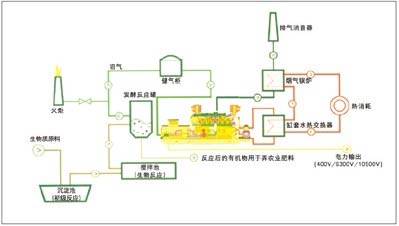

沼沼气发电工艺图:
1. 畜牧粪便沼气发电工艺图
Farm Livestock excreta biogas power plant flow chart
2. 工业有机污水沼气发电工艺图
Industrial organic waste water treatment biogas power plant flow chart
3. 垃圾填埋气体发电工艺图
Landfill gas power plant flow chart
中小功率系列沼气发电机组主要技术参数:
功率 :20-300kw 转速 :1500r/min,1000r/min 电压 :400V/230V 频率 :50Hz
励磁方式 : 无刷 调压方式 : 自动相数 : 三相四线
适应气体 :垃圾填埋,畜牧粪便,工业污水、污泥等各种有机物产生的沼气。
Small-medium power series Biogas gen-set Main technical parameters
Power:20-300kw
Rated speed:1500r/min, 1000r/min Voltage:400V
Freq uency:50Hz
Exciting method:brussless
Voltage regulation mode: antomatic Phase:AC 3-Phase.4 wire Application areas:Rubbish landfill,
farm livestock excreta,waste water and sludge treatment,and other industrial orgaism disposal.
沼气发电机组参数:
大功率沼气发电机组 400kw/500kw/600kw/700kw 参数
